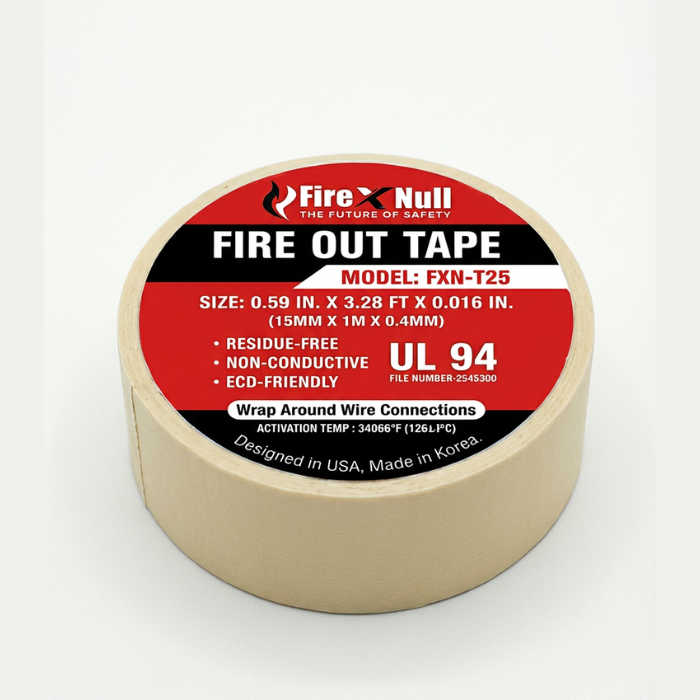

The FXN Tape series provides a cutting-edge, cost-effective fire suppression solution for electrical wire connections. Powered by advanced nanotechnology, each FXN Tape is heat-sensitive and activates automatically at 248±9°F (120±5°C), offering immediate fire suppression for early-stage fires. This eco-friendly clean agent used in the FXN Tape ensures safety without leaving harmful residue behind. Designed for high-risk environments with wire connections at risk of flames or sparks, FXN Tape is an electrical non-conductive, reliable, and maintenance-free solution, providing protection for electrical systems automatically.
• Automatic fire suppression
• UL Recognized
• Non-conductive and residue-free
• Flexible, easy to apply, and maintenance-free
• Cost-effective and environmentally friendly clean agent
Revolutionizing electrical safety, FXN Tape is designed for a wide range of applications where there is a risk of electrical fire and the presence of wiring, wire connections, and junctions.
• Aerospace
• Military and Defense
• Industrial Settings
• Electric Vehicle Manufacturing
• Mass Transit
• Data Centers
• Healthcare
• Smart Home Tech
• DIY Home Safety
• Outdoor Gear
| Model No. | Tape Size (In. width x ft. length) | Tape Size (mm width x m length) |
|---|---|---|
| FXN-T15 | 0.59 x 3.28 | 15 x 1 |
| FXN-T15L | 0.59 x 32.8 | 15 x 10 |
| FXN-T25 | 0.98 x 3.28 | 25 x 1 |
| FXN-T25L | 0.98 x 32.8 | 25 x 10 |
| FXN-T50 | 1.97 x 3.28 | 50 x 1 |
| FXN-T50L | 1.97 x 32.8 | 50 x 10 |
| FXN-T100 | 3.94 x 3.28 | 100 x 1 |
| FXN-T100L | 3.94 x 32.8 | 100 x 10 |
Watch our demo video: Two wire connections—one wrapped with FXN tape and the other without. Both are wrapped with electrical tape and connected to a heat source. Watch what happens as the heat increases; the wire with FXN tape does not burn.
The FXN Tape employs a fire suppression mechanism that activates at 248°F (120°C). Once this temperature is reached, the tape releases a clean, non-residue fire-suppressing agent. This agent rapidly vaporizes, absorbing heat and effectively extinguishing the fire without leaving any residue or causing damage.
• Ensure the electrical enclosure is completely safe to access and the electrical power to the enclosure is disconnected before installing the FXN Tape.
• Do not place the FXN Tape on a hot surface or in an environment where the ambient temperature exceeds 248±9°F (120±5°C).
• Clean the surface where the tape will be applied.
• Ensure the surface is dry and free of dust, grease, contaminants, and lubricants.
• Measure and cut the FXN Tape to the required length. Ensure the tape will securely cover the wire connection or junction.
• Begin wrapping the tape around the wire, ensuring it securely covers the connection point.
• Continue wrapping until the connection is fully covered.
• For added durability and protection, wrap the connection with electrical tape over the FXN Tape.
• Ensure the tape is wrapped tightly and smoothly around the wire.
• Inspection: Inspect the wrapped wire for any gaps or loose ends and re-wrap if necessary.
• Labeling: Ensure to label the installation date and 5-year shelf life (expiration) on the tape or enclosure.
• Replace the tape every 5 years or after each activation.
