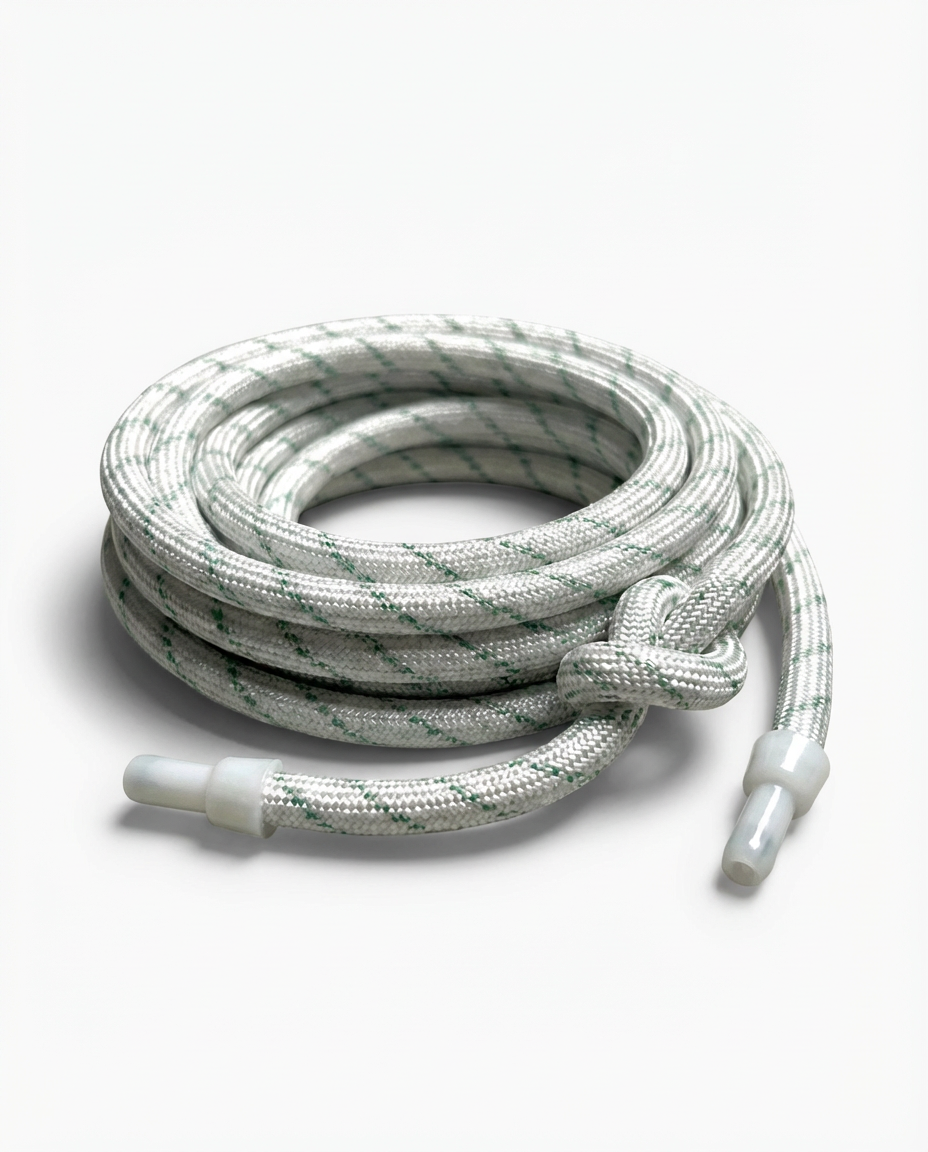

FXN Rope for Electrical Enclosures

FXN Rope for Electrical Enclosures

Regular price $249.99 USD
Regular price Sale price $249.99 USD
Sale Sold out
Shipping calculated at checkout.
Size
Quantity

Model:FXN-R100

Automatic fire-suppression rope for enclosures.

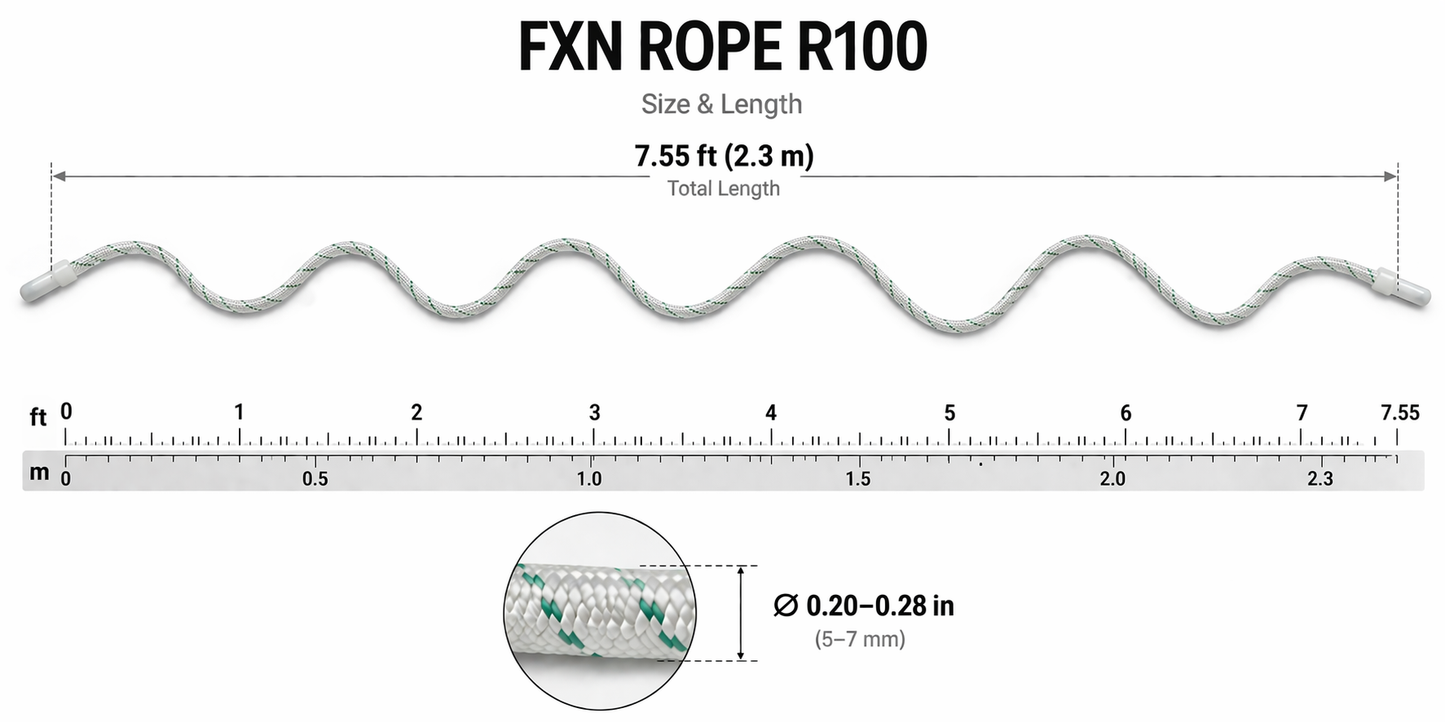

Specifications

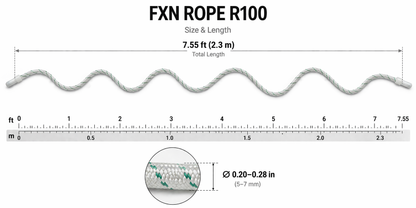

  • Length: 7.55 ft (2.3 m)
  • Diameter: 0.20–0.28 in (5–7 mm)
  • Weight: 6.70 oz (190 g)
  • Activation Temp: 428°F ± 18°F (220°C ± 10°C)
  • Coverage Capacity: 2.5–3.5 ft³ (65–100 L) enclosure volume
  • Installation: Horizontal / top interior only (cannot be cut)
  • Fire Classes: Suitable for Class A, B, and C fire risks
  • Fire Suppressant Agent: FK-5-1-12 clean agent
View full details

FXN Rope – FAQs

FXN Rope actively suppresses fire by releasing a clean agent when heated, rather than only slowing flame spread like passive fire-retardant materials.

No. FXN Rope should not be cut, trimmed, crushed, kinked, or modified. Select the correct model based on enclosure volume and install it as instructed.

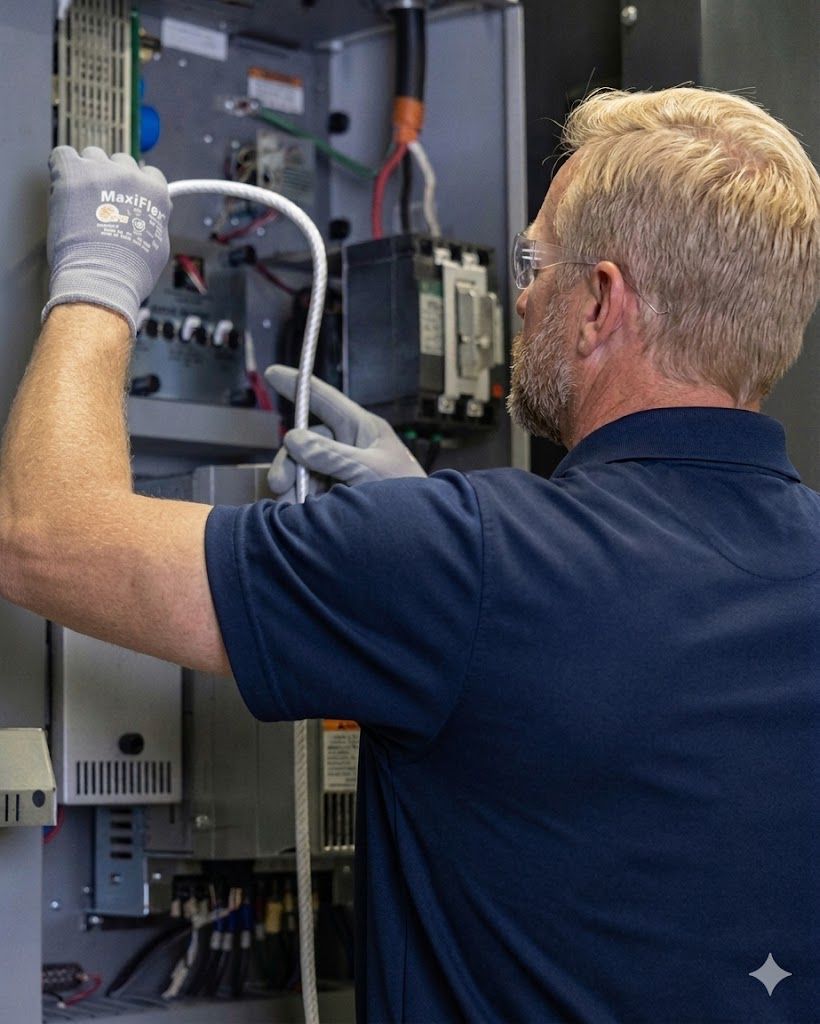

No. FXN Rope can be installed along wiring paths or near potential ignition sources and does not require ceiling-only placement.

No. Its flexible, low-profile design allows normal airflow and does not obstruct ventilation or cooling systems.

FXN Rope requires no routine maintenance. Periodic visual inspection during normal equipment servicing is sufficient.

Yes. The California Office of the State Fire Marshal confirmed that FireXNull’s product category is not required by California state law to be OSFM-listed. OSFM also confirmed that the absence of an OSFM listing does not prohibit the sale, marketing, or use of the products in California, provided applicable requirements are met. Because OSFM does not maintain a listing category for this type of product, FireXNull products are not OSFM-listed.

Yes, depending on the vessel, application, and applicable regulations. The U.S. Coast Guard advised that there is currently no specific carriage requirement for a fire-suppression system inside electrical compartments, so USCG type approval is not issued for that application. USCG also noted that certain non-approved fire-extinguishing equipment may be installed on some vessels as “excess equipment” or “equipment installed but not required,” provided applicable vessel requirements and recognized industry standards are satisfied. FireXNull products should not be represented as USCG type-approved.
