Power Generator Fire Suppression Systems

Standby and backup generators keep the lights on when everything else fails — but the electrical enclosures, control panels, and wiring that make them run are also a common ignition point. FireXNull Inc. builds passive power generator fire suppression systems that mount inside the equipment and put out a fire at its source, automatically, with no power, wiring, sensors, or human action required.

Why Generators Need Dedicated Fire Suppression

A generator is a dense package of the exact conditions that start electrical fires: high current, tight connections, control electronics, battery banks, and cabling that vibrates and heats through every start-stop cycle. Over time, connections loosen, insulation ages, and a single fault inside a sealed enclosure can smolder unseen until it becomes a fire.

The hard part is location. The most dangerous faults happen inside closed control cabinets and junction boxes — precisely where building sprinklers can't reach and where a ceiling smoke detector won't notice until the fire has already spread. A generator fire suppression system solves this by placing protection inside the enclosure, right where the fire begins.

How FireXNull Generator Fire Suppression Works

Every FireXNull Inc. product is built on the same core: thousands of microscopic capsules holding a fire-suppressing clean agent. The capsules stay sealed during normal operation and rupture the instant heat crosses their trigger point — around 248°F (120°C) — releasing the agent directly onto the heat source. Because the reaction is driven by heat itself, the response is automatic and local, with no power or wiring involved. You can read the full breakdown on our fire suppression technology page.

The agent is an FK-5-1-12 clean agent — electrically non-conductive and residue-free. That matters enormously around generators, because water conducts electricity and dry powders leave a corrosive mess that can ruin the control gear you were trying to protect. A clean agent stops the fire and then evaporates, leaving the surviving equipment ready to inspect and repair.

Our Generator Fire Suppression Products

Different parts of a generator need different shapes of protection. All three products below use the same heat-activated microcapsule technology — the format simply matches where the risk sits.

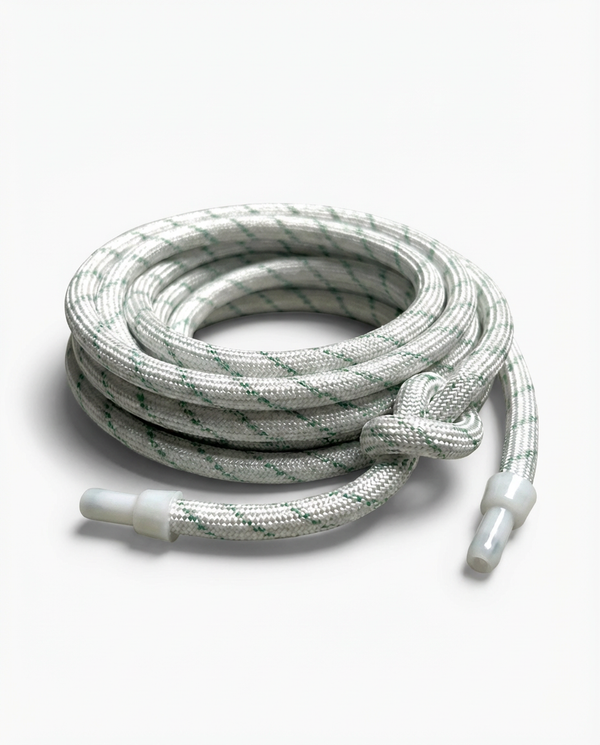

FXN Rope (R100)

Flexible suppression cord for larger control cabinets, cable runs, and battery enclosures inside generator systems.

From $249.99

View FXN Rope

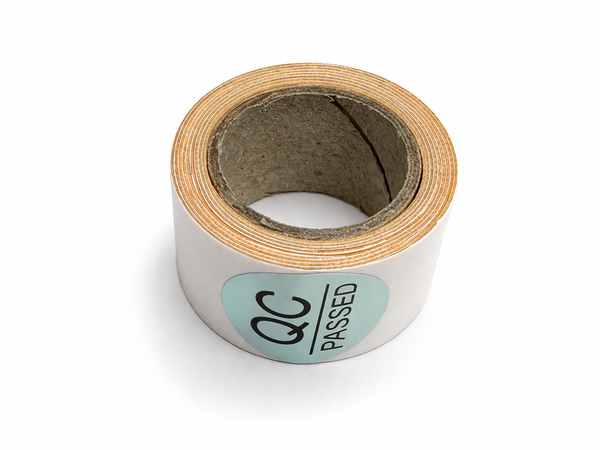

FXN Tape (T25)

Wraps directly around wire connections, terminals, and junctions — the points where generator faults most often start.

$54.99

View FXN Tape

FXN Sticker (SA4)

Cuttable panel that mounts inside control panels and small enclosures, sized to the volume of the box.

From $34.99

View FXN Sticker

Not sure which format fits your setup? Our applications overview groups the products by environment, from control panels and breaker boxes to battery cabinets and EV chargers.

Where Generator Fire Suppression Protects

• Control panels — the brain of the generator, packed with relays and electronics.
• Wire connections and terminals — the single most common electrical ignition point.
• Battery enclosures — starting batteries and energy storage that can fail thermally.
• Junction boxes and cabling — where vibration slowly loosens connections.
• Transfer switch cabinets — high-current gear that runs hot under load.

Why Choose Passive Suppression for Generators

• No power required — it works even when the generator or its controls lose power, which is exactly when an electrical fire might strike.
• No wiring or sensors — nothing to install, integrate, or fail. It reacts to heat on its own.
• Residue-free — the clean agent leaves no conductive or corrosive mess behind.
• Fast, local response — the agent hits the fire at its source, not just the general area.
• Minimal maintenance — no batteries, no electronics, just a periodic visual check.
• Rated for Class A, B, and C fire risks common in electrical equipment.

FireXNull products are passive, supplemental fire-suppression components designed to catch and stop fires at their source during the early stage. They are not a substitute for code-required fire detection or suppression systems, and performance depends on proper installation and use within specified conditions. FireXNull does not guarantee prevention of all fire incidents or resulting damage.
