Single FXN Rope Sizes Cover Enclosures Up to 70 Cubic Feet (2000 Liters).

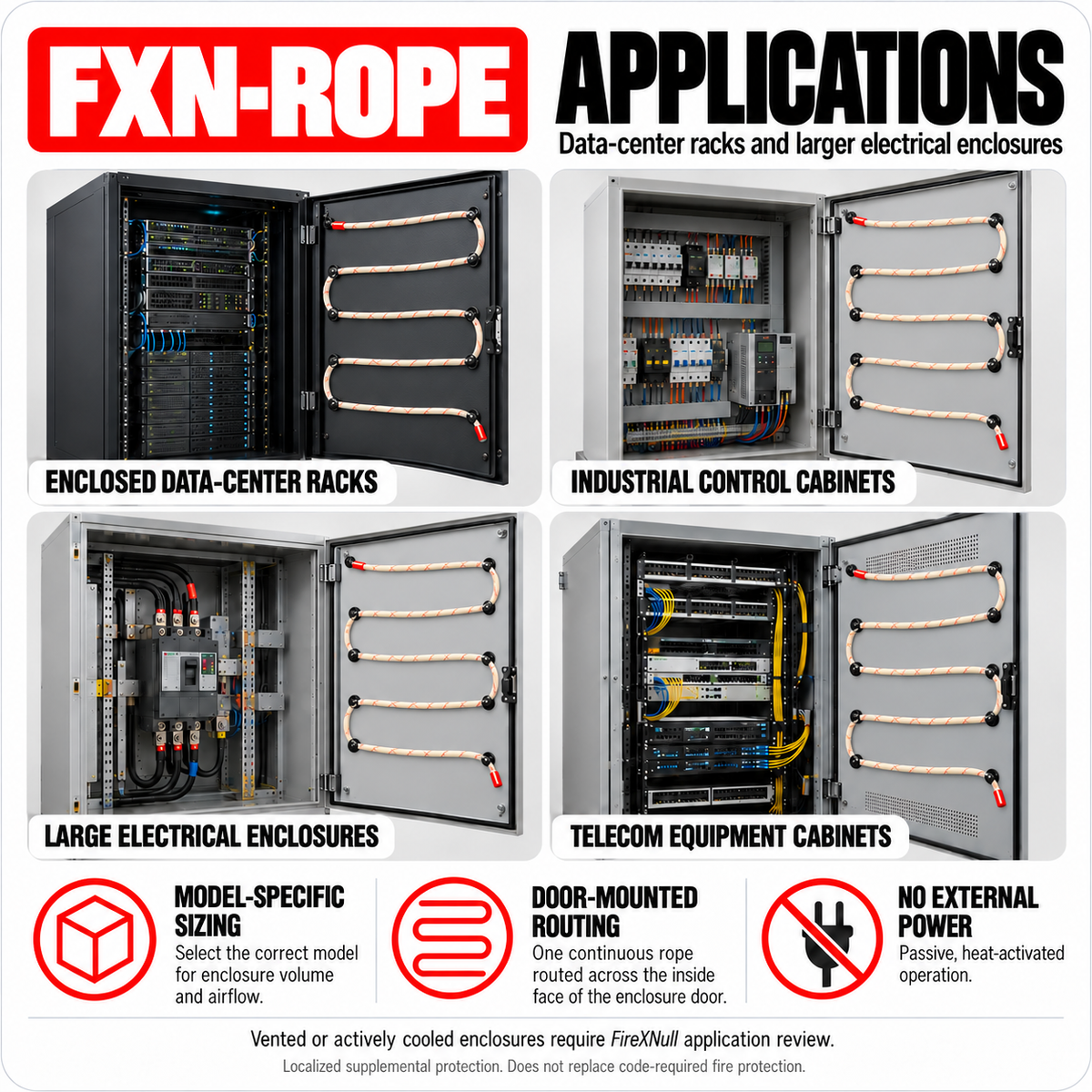

• Electrical cabinets and junction boxes
• Data centers and server racks
• Marine and aerospace compartments
• Industrial equipment and control systems
• Automotive industry applications
• Energy Storage System (ESS) enclosures
Its flexible design and advanced technology ensure dependable fire suppression in critical environments.

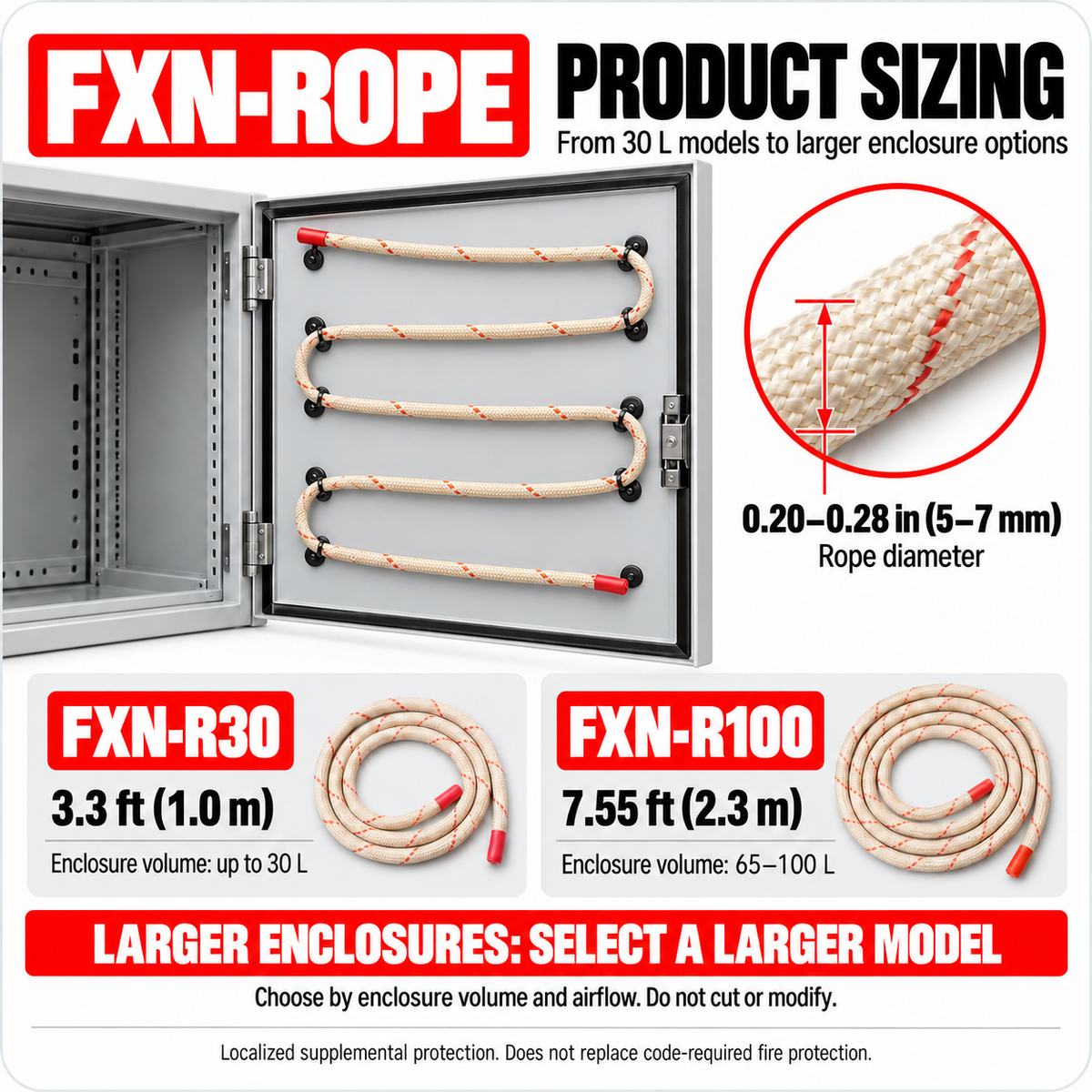

| Model No. | Rope Size (ft) | Rope Size (m) | Cabinet Volume (ft³) | Cabinet Volume (L) |
|---|---|---|---|---|

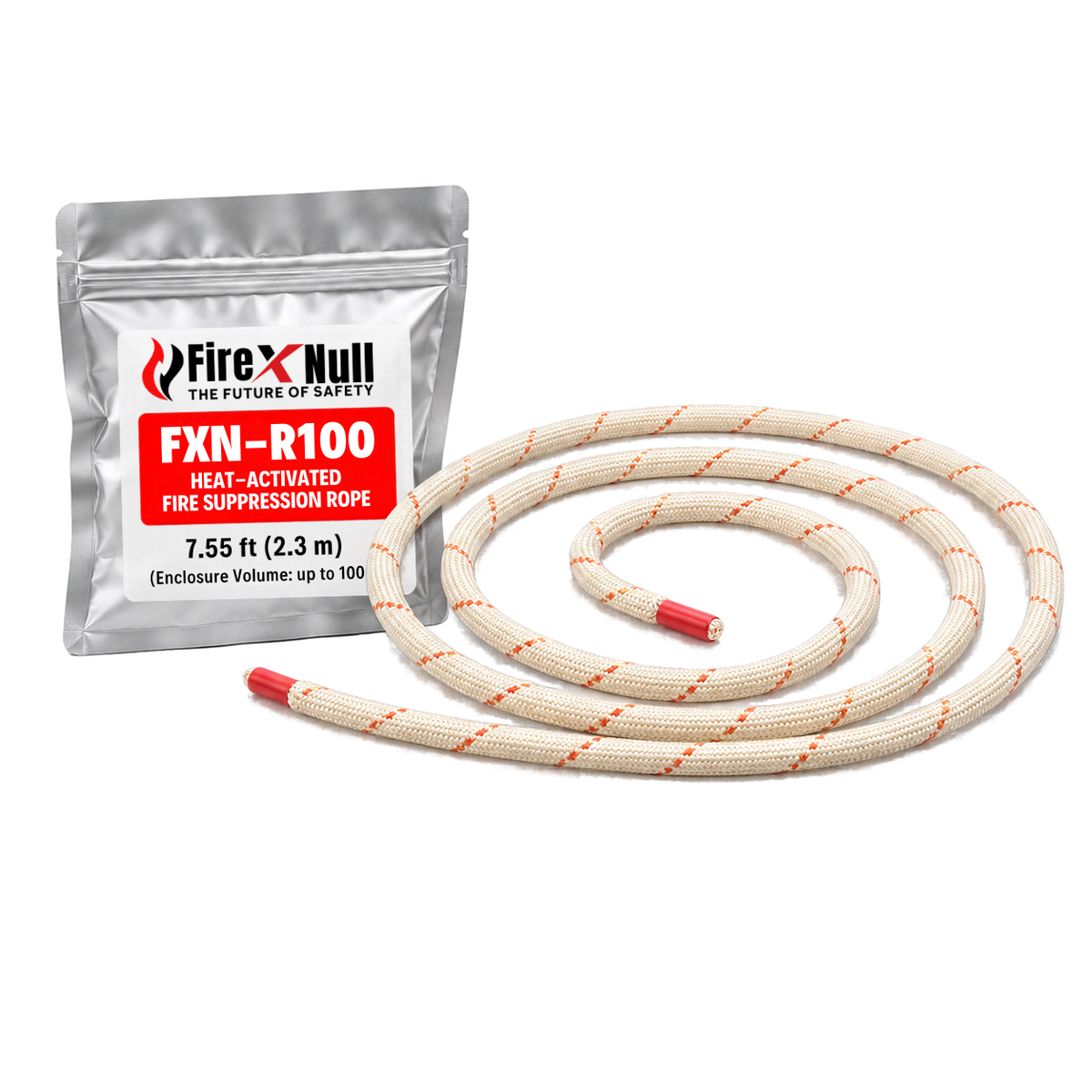

| FXN-R100 | 7.55 | 2.3 | 2.5 ~ 3.5 | 65 ~ 100 |
| FXN-R200 | 10.83 | 3.3 | 7 | 200 |
| FXN-R300 | 14.76 | 4.5 | 10 | 300 |
| FXN-R500 | 20.67 | 6.3 | 17 | 500 |
| FXN-R750 | 27.56 | 8.4 | 26 | 750 |
| FXN-R1000 | 34.45 | 10.5 | 35 | 1000 |
| FXN-R1500 | 46.59 | 14.2 | 53 | 1500 |
| FXN-R2000 | 59.38 | 18.1 | 70 | 2000 |
Watch our demo video: a large enclosure equipped with the FXN Rope effectively covers all ignition points. Upon activation, the rope suppresses an early fire in less than 20 seconds.

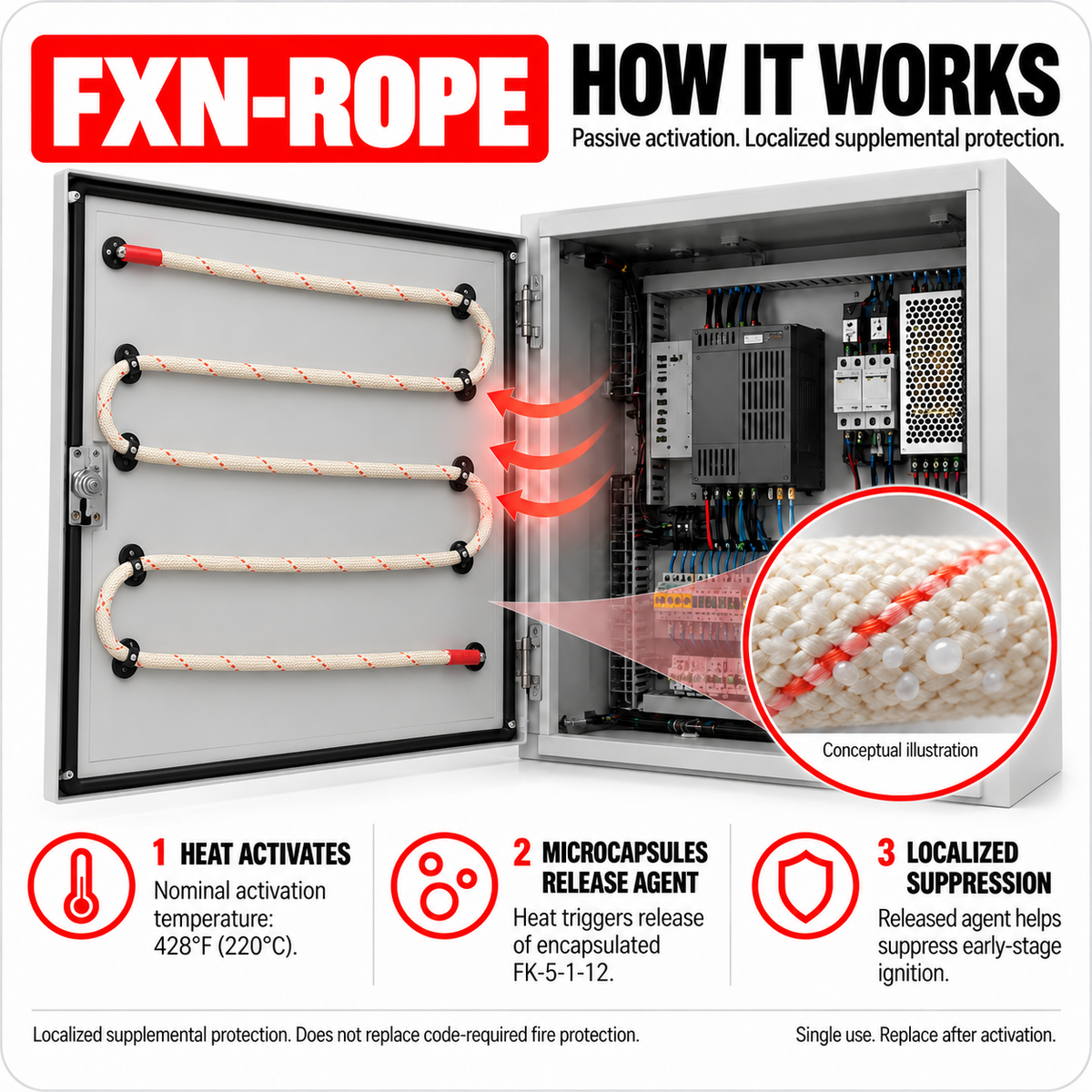

1. Localized Activation: When a section of the FXN Rope reaches 428°F (220°C), the microcapsules in that area release a clean, non-residue fire-suppressing agent. This agent rapidly vaporizes, absorbing heat and effectively extinguishing the fire without leaving residue or causing damage.
2. Thermal Propagation: The FXN Rope also contains potassium nitrate, which, upon activation, decomposes exothermically, generating additional heat. This heat propagates along the rope, triggering adjacent microcapsules to release their fire-suppressing agent, ensuring comprehensive suppression throughout the enclosure.
This combination of localized activation and thermal propagation ensures rapid and effective fire suppression, providing reliable protection for critical environments.

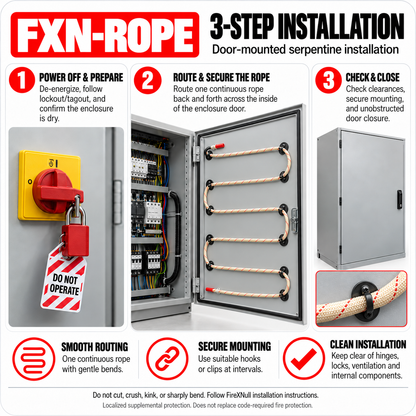

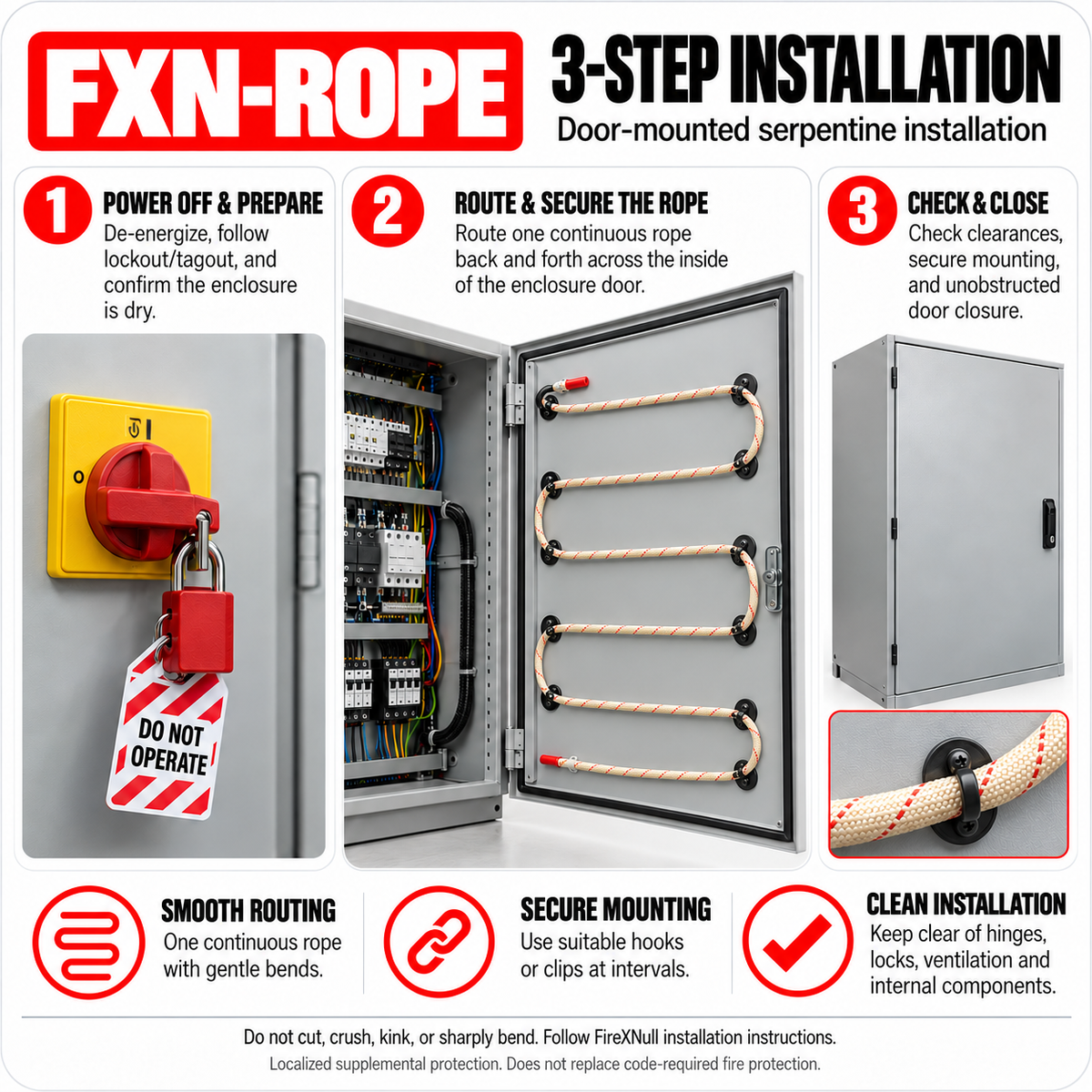

FXN Rope Installation Instructions
• Ensure the electrical enclosure is completely safe to access, and the electrical power is disconnected before installation.
• Avoid placing the FXN Rope on a hot surface or in an environment where the ambient temperature exceeds 428°F ± 9°F (220°C ± 5°C).
• Handle the FXN Rope with care—do not crush, kink, or cut the rope.
• Wear fireproof gloves when handling the rope to prevent accidental injuries.
• Ensure the surface inside the enclosure is clean, dry, and free of dust, grease, contaminants, or lubricants.
• Use a lint-free cloth to wipe the surface thoroughly.
• Peel off the protective paper from the adhesive side of the mounting hooks.
• Press the mounting hooks firmly onto the cleaned surface, ensuring there are no gaps and full adhesion is achieved.
• Maintain a spacing of 6 inches (150mm) between each hook for optimal support.
• Roll the flat tab of the mounting hooks into a semi-circle to match the rope diameter.
• Position the FXN Rope horizontally above potential ignition sources for quicker response time.
• Secure the rope to the mounting hooks using cable ties, ensuring the ties are snug but not overly tight to avoid deforming the rope.
• Trim any excess length of the cable ties using appropriate cutting tools.
• Inspect the installation for proper alignment and secure fastening.
• Label the installation date and 5-year shelf life (expiration) on the enclosure in a visible location.
• Regularly inspect the FXN Rope and mounting hooks for signs of wear or damage.
• Replace the FXN Rope every 5 years or immediately after activation.
