APPLICATION / FIREXNULL
Supplemental Fire Suppression for Generator Controls and ATS Cabinets
Evaluate supplemental suppression in compatible generator control and ATS electrical cabinets, not generator engine or fuel hazards.
FireXNull products are designed as supplemental protection, not as substitutes for code-required fire protection systems. Review technical documentation and confirm fit for the application.
APPLICATION OVERVIEW

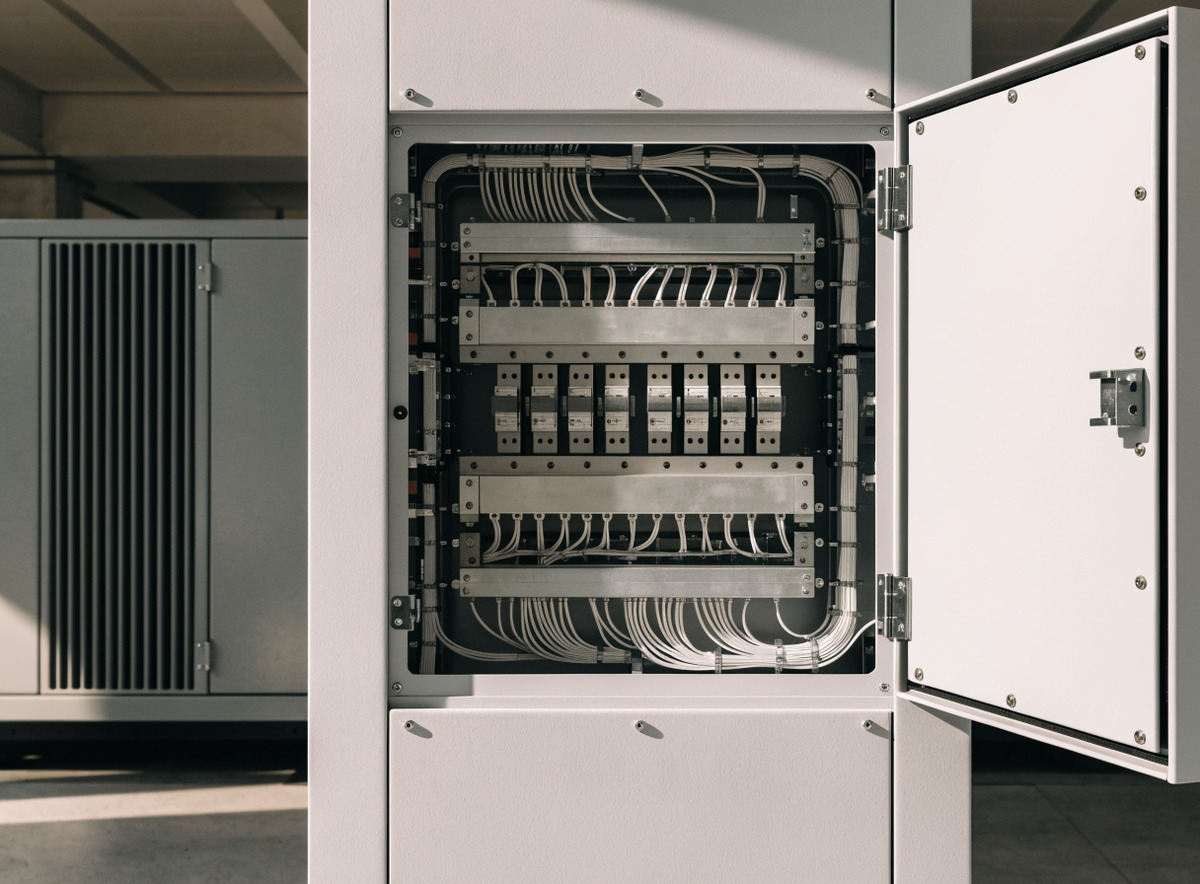

Generator Controls & Transfer Switches: Electrical Enclosures for Evaluation
Evaluate localized supplemental suppression for compatible generator-control, automatic transfer switch and auxiliary electrical enclosures, not for engine compartments or fuel hazards.
Application boundary: FireXNull products are passive, heat-activated, localized supplemental suppression products for compatible electrical equipment. They do not replace required electrical protection, detection, alarms, or fire-safety systems.
01 / EQUIPMENT CONTEXT
Focus on the Enclosed Electrical Equipment.
Backup-power systems rely on control cabinets, transfer switches, breaker panels and auxiliary distribution equipment. Their enclosed electrical connections may be candidates for a targeted evaluation separate from engine and fuel fire protection.
No industry incident statistic on this page is being used as evidence of FireXNull performance.
02 / CANDIDATE ENCLOSURES
Which Electrical Enclosures Can Be Evaluated?
Rope and Sticker may suit eligible cabinet geometries for review; Tape may suit selected enclosed electrical terminations when compliant with the specific electrical design. Examples below are engineering evaluation candidates, not equipment-specific certifications or validated coverage claims.
- Generator control panelsEligible enclosed control wiring, terminals and electronic modules.
- Automatic transfer switch cabinetsCompatible auxiliary and termination compartments, subject to switching clearances.
- Generator breaker and distribution panelsEnclosed low-voltage electrical connection points.
- Power-monitoring enclosuresControls and metering terminals.
- Standby-power auxiliary panelsEnclosed AC/DC distribution and control circuits.
03 / PRODUCT FORMATS
Match the FireXNull Format to the Enclosure.
Compare the three heat-activated product families. A suitable product and model must be selected using the current approved TDS, enclosure details, electrical clearances and technical review.
FXN Sticker (S Series)
Adhesive-backed format for compatible smaller electrical enclosures with suitable upper-interior mounting surfaces.
Activation: 248°F ± 9°F (120°C ± 5°C)
Explore product →FXN Rope (R Series)
Flexible rope for eligible electrical cabinets with mounting points and required clearance.
Activation: 428°F ± 9°F (220°C ± 5°C)
Explore product →FXN Tape (T Series)
Cuttable wrap for selected compatible enclosed electrical terminals and connections.
Activation: 248°F ± 9°F (120°C ± 5°C)
Explore product →| Selection factor | What to verify |
|---|---|
| Enclosure geometry | Internal dimensions, mounting area and obstructions. |
| Operating conditions | Internal temperature, air leakage, ventilation, humidity and condensation. |
| Electrical safety | Voltage, live-part clearance, service access and manufacturer instructions. |
| Product documentation | Model-specific sizing, installation, replacement and safety documentation. |
04 / ENGINEERING FIT
What the Technical Review Must Confirm.
- Identify ATS design, interlocks, moving contacts and arc-clearance requirements.
- Confirm that mounting does not interfere with switching or service access.
- Provide manufacturer/model, enclosure dimensions, heat profile and airflow.
- Distinguish enclosed electrical compartments from engine/fuel/exhaust zones.
- Arrange de-energized installation under manufacturer-approved isolation procedures.
The products operate without a power connection or detection wiring; they do not communicate an alarm signal. Installation should be performed only by qualified personnel on appropriately isolated and verified equipment.
05 / IMPORTANT LIMITATIONS
The Scope of This Application.
FireXNull does not claim suppression of diesel, gasoline, lubricating-oil or engine fires, exhaust-system fires, or protection of complete generator sets. It does not replace transfer-switch safety, required fire protection or maintenance.
FireXNull contains FK-5-1-12, an electrically non-conductive clean agent. The clean agent itself does not leave residue, but other product materials or a fire event may. Electrical non-conductivity of the agent does not establish universal compatibility of the finished product with energized equipment.
06 / TECHNICAL FAQ
Frequently Asked Questions
Does this protect the generator engine or fuel system?
No. Only compatible enclosed generator electrical controls, eligible transfer-switch areas and auxiliary distribution components are considered. Engine and combustible-fluid hazards are outside this scope.
Does FireXNull replace installed fire protection, alarms or electrical protection?
No. FireXNull is considered only as a supplemental localized layer in suitable electrical enclosures and does not replace code-required systems or maintenance.
Can FireXNull be installed while the equipment is energized?
Do not install on energized equipment. Qualified personnel must isolate and verify a safe work condition in accordance with the equipment manufacturer's instructions and applicable procedures.
Can this be used in outdoor or mechanically ventilated cabinets?
Potentially only after technical review. Internal temperatures, active airflow, cabinet leakage, humidity and condensation can make an enclosure unsuitable. Consult the current product-specific TDS and the equipment OEM.
How do we choose among Sticker, Rope and Tape?
Select by the electrical enclosure and intended placement. Sticker requires a compatible interior mounting surface; Rope requires appropriate secure routing and clearances; Tape may be considered for eligible electrical terminations. Final selection requires model-specific documentation and evaluation.
How is the product inspected or replaced?
Follow the selected model's approved TDS for inspection and replacement requirements. These are single-use products and must be replaced after activation. Qualified personnel should inspect equipment after any fire event before returning it to service.
Does the product notify a central alarm panel?
No. FireXNull suppression activates locally with heat and does not generate an alarm, notification or connection to an existing fire panel.
This page describes prospective evaluation applications, not completed field testing, certification or guaranteed suppression performance. Site and equipment-specific suitability must be demonstrated before installation.
Request an Electrical Enclosure Engineering Review
Send the equipment manufacturer and model, enclosure dimensions, operating conditions, and images or drawings of the intended mounting area. FireXNull can discuss whether a product-format evaluation is appropriate.
