APPLICATION / FIREXNULL
Supplemental Fire Suppression for Roadway Electrical Control Cabinets
Explore supplemental suppression for compatible roadway and transportation electrical enclosures, subject to agency and OEM approval.
FireXNull products are designed as supplemental protection, not as substitutes for code-required fire protection systems. Review technical documentation and confirm fit for the application.
APPLICATION OVERVIEW
Transportation & Roadway Electrical Infrastructure: Electrical Enclosures for Evaluation
Explore localized supplemental suppression for compatible roadside traffic control, transportation monitoring and auxiliary electrical enclosures, subject to agency and equipment approval.
Application boundary: FireXNull products are passive, heat-activated, localized supplemental suppression products for compatible electrical equipment. They do not replace required electrical protection, detection, alarms, or fire-safety systems.
01 / EQUIPMENT CONTEXT
Focus on the Enclosed Electrical Equipment.
Roadway and transportation equipment often places controls, power distribution and communications inside accessible cabinets exposed to weather, vibration and variable maintenance cycles. FireXNull's potential role concerns the electrical enclosure, not the transportation system's overall safety.
No industry incident statistic on this page is being used as evidence of FireXNull performance.
02 / CANDIDATE ENCLOSURES
Which Electrical Enclosures Can Be Evaluated?
Sticker and Rope may be candidate formats inside appropriate cabinets; Tape may be evaluated for suitable electrical terminations. Final model choice must be reviewed. Examples below are engineering evaluation candidates, not equipment-specific certifications or validated coverage claims.

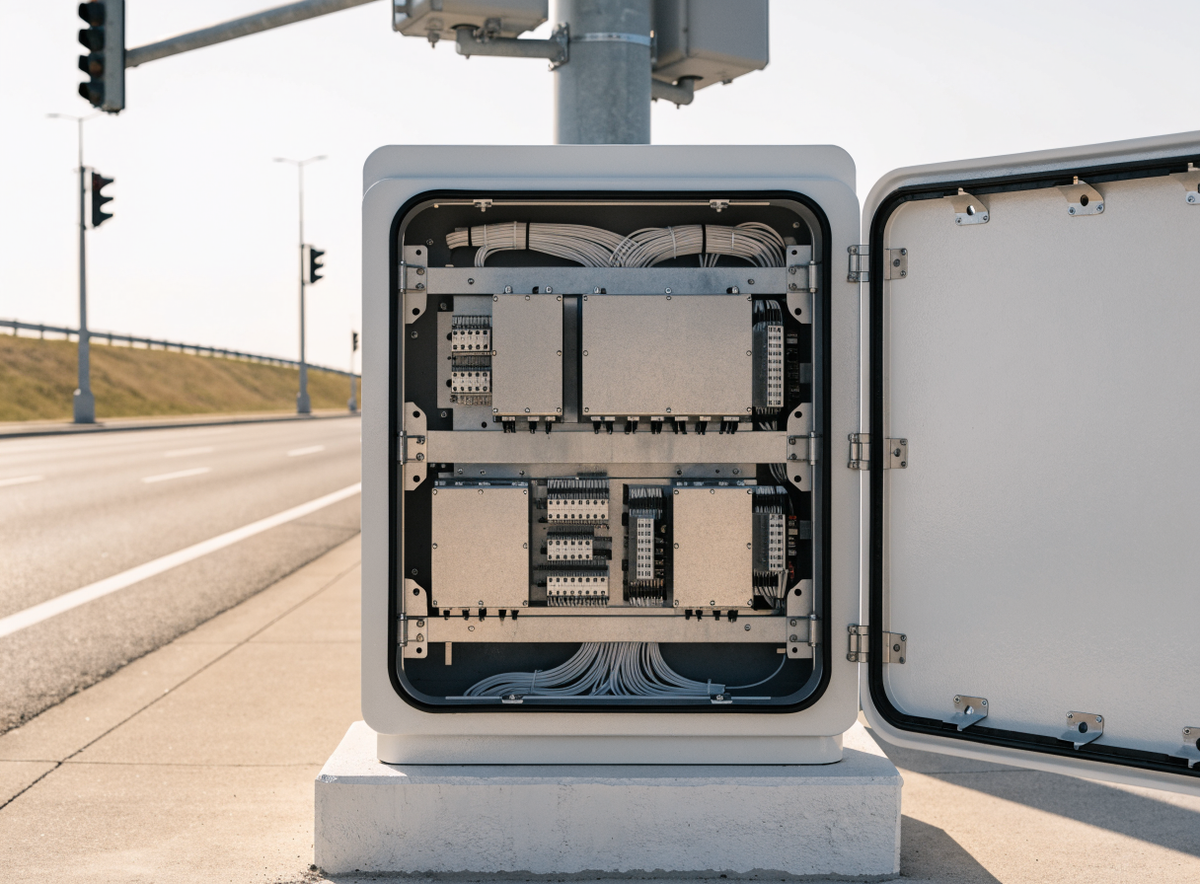

- Traffic-signal controller cabinetsCompatible enclosed control and auxiliary distribution components.
- Intelligent transportation system cabinetsRoadside monitoring, communications and low-voltage control connections.
- Roadway lighting control cabinetsEnclosed branch control, relays and power terminations.
- Rail signaling auxiliary enclosuresOnly where separately evaluated and approved by the responsible operator.
- Transportation monitoring panelsEligible enclosed electrical monitoring and communications cabinets.
03 / PRODUCT FORMATS
Match the FireXNull Format to the Enclosure.
Compare the three heat-activated product families. A suitable product and model must be selected using the current approved TDS, enclosure details, electrical clearances and technical review.
FXN Sticker (S Series)
Adhesive-backed format for compatible smaller electrical enclosures with suitable upper-interior mounting surfaces.
Activation: 248°F ± 9°F (120°C ± 5°C)
Explore product →FXN Rope (R Series)
Flexible rope for eligible electrical cabinets with mounting points and required clearance.
Activation: 428°F ± 9°F (220°C ± 5°C)
Explore product →FXN Tape (T Series)
Cuttable wrap for selected compatible enclosed electrical terminals and connections.
Activation: 248°F ± 9°F (120°C ± 5°C)
Explore product →| Selection factor | What to verify |
|---|---|
| Enclosure geometry | Internal dimensions, mounting area and obstructions. |
| Operating conditions | Internal temperature, air leakage, ventilation, humidity and condensation. |
| Electrical safety | Voltage, live-part clearance, service access and manufacturer instructions. |
| Product documentation | Model-specific sizing, installation, replacement and safety documentation. |
04 / ENGINEERING FIT
What the Technical Review Must Confirm.
- Confirm public-agency or equipment-OEM permission before modifying a cabinet.
- Assess outdoor heat, condensation, vibration, dust and cabinet seals.
- Preserve safety-critical circuitry, service access and required clearances.
- Document enclosure airflow and location of electrical terminals.
- Check whether installation impacts equipment warranty, certification or operating approval.
The products operate without a power connection or detection wiring; they do not communicate an alarm signal. Installation should be performed only by qualified personnel on appropriately isolated and verified equipment.
05 / IMPORTANT LIMITATIONS
The Scope of This Application.
This is not a claim of Caltrans or transportation-agency approval, traffic-system reliability, railway safety certification, or suppression of vehicle, tunnel, or open-air fires. Agency-specific qualification remains necessary.
FireXNull contains FK-5-1-12, an electrically non-conductive clean agent. The clean agent itself does not leave residue, but other product materials or a fire event may. Electrical non-conductivity of the agent does not establish universal compatibility of the finished product with energized equipment.
06 / TECHNICAL FAQ
Frequently Asked Questions
Is FireXNull approved for Caltrans or railway signaling cabinets?
No agency approval or rail safety qualification is claimed by this page. Suitability and authorization require review by the relevant agency, equipment manufacturer and qualified engineers before use.
Does FireXNull replace installed fire protection, alarms or electrical protection?
No. FireXNull is considered only as a supplemental localized layer in suitable electrical enclosures and does not replace code-required systems or maintenance.
Can FireXNull be installed while the equipment is energized?
Do not install on energized equipment. Qualified personnel must isolate and verify a safe work condition in accordance with the equipment manufacturer's instructions and applicable procedures.
Can this be used in outdoor or mechanically ventilated cabinets?
Potentially only after technical review. Internal temperatures, active airflow, cabinet leakage, humidity and condensation can make an enclosure unsuitable. Consult the current product-specific TDS and the equipment OEM.
How do we choose among Sticker, Rope and Tape?
Select by the electrical enclosure and intended placement. Sticker requires a compatible interior mounting surface; Rope requires appropriate secure routing and clearances; Tape may be considered for eligible electrical terminations. Final selection requires model-specific documentation and evaluation.
How is the product inspected or replaced?
Follow the selected model's approved TDS for inspection and replacement requirements. These are single-use products and must be replaced after activation. Qualified personnel should inspect equipment after any fire event before returning it to service.
Does the product notify a central alarm panel?
No. FireXNull suppression activates locally with heat and does not generate an alarm, notification or connection to an existing fire panel.
This page describes prospective evaluation applications, not completed field testing, certification or guaranteed suppression performance. Site and equipment-specific suitability must be demonstrated before installation.
Request an Electrical Enclosure Engineering Review
Send the equipment manufacturer and model, enclosure dimensions, operating conditions, and images or drawings of the intended mounting area. FireXNull can discuss whether a product-format evaluation is appropriate.
